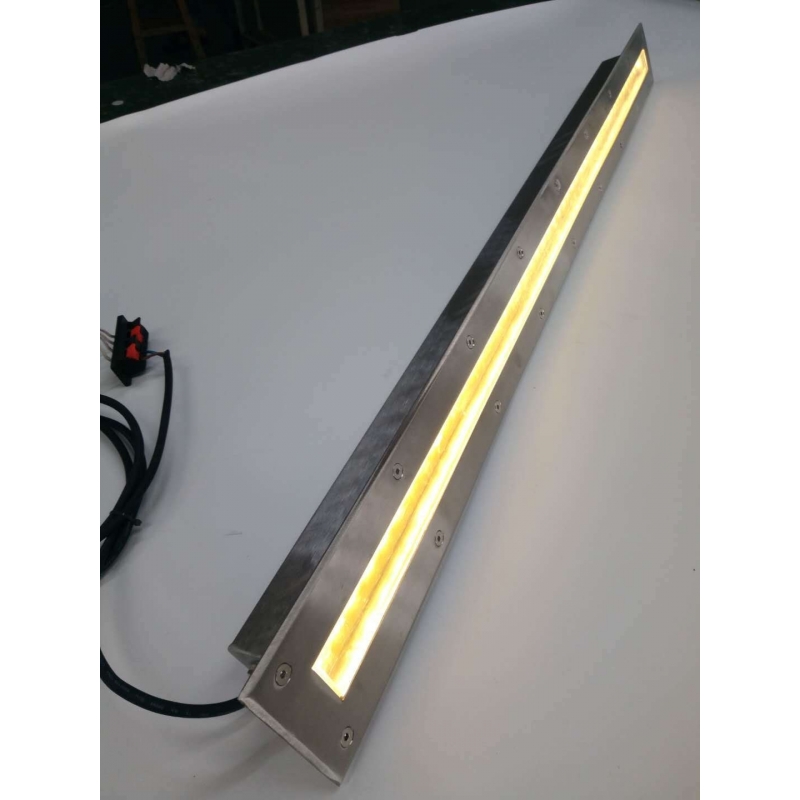

LED wall washer light
Product size: L1000*W90*H70MM name; 12W underwater light
Working voltage; DC12V
Working power: 12W (12X1W)
Light: Taiwan Epistar chip
Color temperature: 2800-3000K
Luminous flux: single 100 LM
Waterproof structure, etc.: outdoor type, full tree pointing casting, waterproof IP67
Ambient temperature: -30℃ to 50℃
: single color always on.
Power supply: built-in constant current flow 12-26V;
Luminous angle; 20 °45 ° 60 ° (optional)
Material: stainless steel casting body, stainless steel screws fixed, integrated heat dissipation structure, tempered glass, 30 stainless steel front cover.
Quality assurance: normal use quality assurance for two years
Note: This model of lights has a variety of specifications, can be made into a of different power lights, supply and customer selection.
LED lighting applications, dedicated to replacing all traditional high-consumption, containing harmful substances unhealthy lights. As long as there light, there is the existence of LED..
LED spotlights through the control of the built-in micro chip, can be used without a controller, can achieve gradient jump change, color flashing, random flashing, gradient alternation and other dynamic effects, but also through the external control of the international standard DMX512 protocol control system the pursuit, scanning and other effects. With the industry‘s recognized performance stability of Taiwan Epistar or the United States of America. The chip is a high-power LED high-quality constant current drive power supply, reasonable profile heat dissipation, high-power LED spotlights using aluminum thermal structure design, greatly increasing the heat dissipation area; unique appearance according modern streamlined design: the housing and the ordinary lamp housing, metal materials compared to the design in the process of power and LED heat in time to the housing, to provide a guarantee the extension of the life of the lamp. The product is more energy-saving, the life is really super long!
Installation instructions:
1) Cut off power supply before the product is installed to prevent electric shock.
2) Design and equip the power supply according to the number of products installed.
3) Products should installation in places with heat sources and hot steam, corrosive gases, so as not to affect the life.
4) Please read the product specification carefully before installation.
5) Make sure that the installation location can withstand 10 times the weight of the product before installation. Installation in a flat place without vibration, swaying, and fire hazards
6) The control system is designed by the engineer to extend the optimized LED life under normal working conditions and typical color change effects during and after use. Working beyond these or conditions or at the upper limits of these and conditions for long periods of time will further reduce the life of the LED. In the worst case, the internal light source components will.
7) The company is not responsible for any damage to the lights caused by the installation and use of the product that does not meet the requirements of the instructions
